Wire rope wrench hoist introduction
Wire rope wrench is an efficient product, safe and durable, with exquisite shape, reasonable structure and other advantages, wear resistance and breaking force is relatively good, using aluminum shell for production, easy to carry and operate, widely used in deep well operations, railway traction and other places, the use of the scope is more extensive. Very popular with everyone.
Picture of wire rope wrench

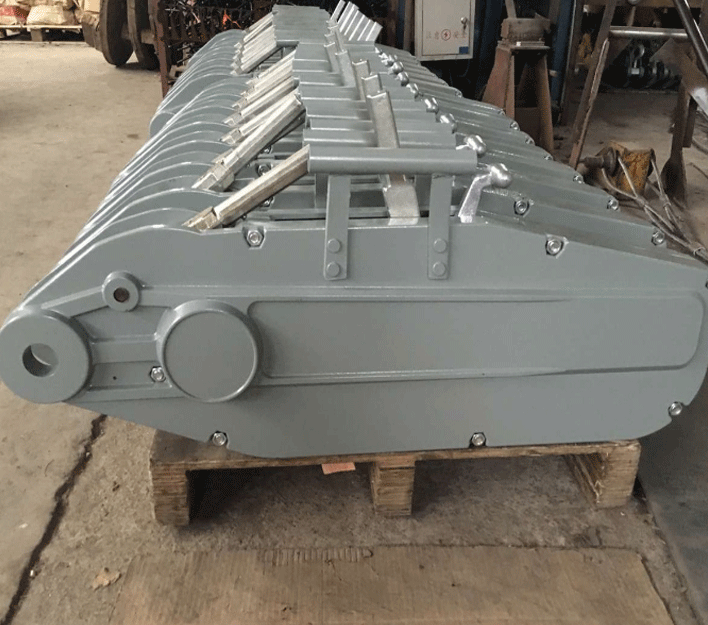

Side View

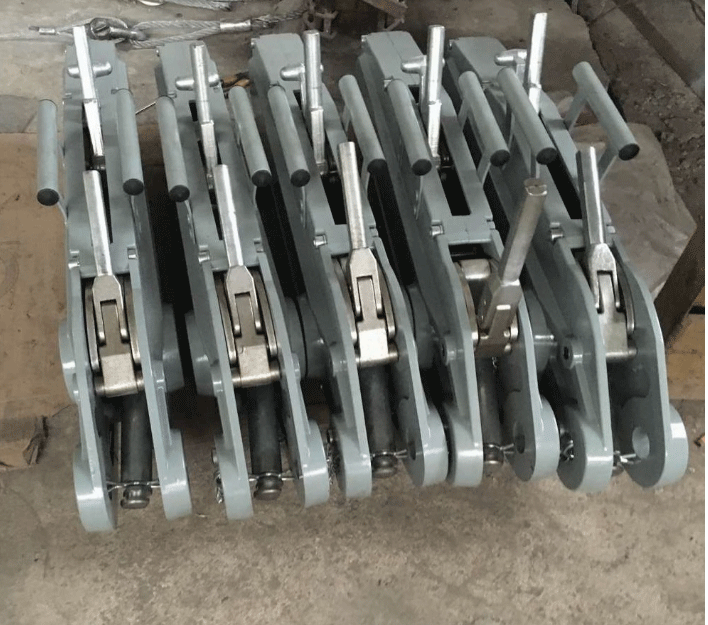

Side display of wire rope wrench

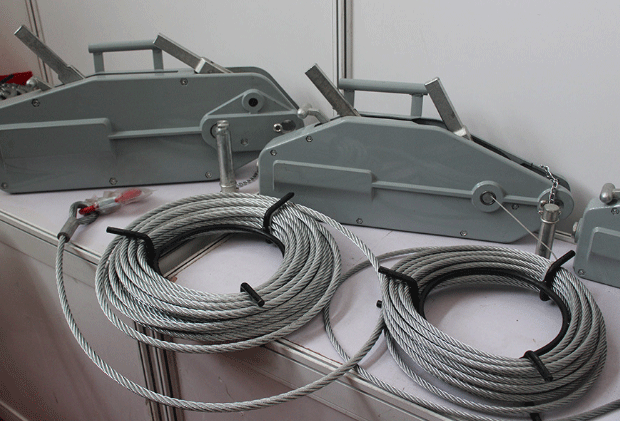

Wire rope wrench hoist display
Performance characteristics of wire rope wrench
1.High Factor of safety, reasonable use this product has lifting, traction, tension three major functions, compact structure, and Factor of safety is higher, the use of time is longer, structure is reasonable, trustworthy.
2.wear resistance and breaking force are good this product is based on customer needs for the length of wire rope produced.3,.easy to disassemble and install this product can be made according to the construction requirements, fixed attachment point can be installed and easy to operate.
The price of wire rope wrench, and the price of direct selling wire rope wrench are usually around 200 yuan. Depending on the model and the parameters, their price difference is also different, so we need to according to their own needs to scientific and reasonable production, purchase more affordable equipment quote. The price of hand wrench gourd equipment is changing at any time, there is no intermediary, is the factory delivery, the factory purchase price is cheaper.
Technical parameters
| Rated capacity(kg) |
800 |
1600 |
3200 |
5400 |
| Rated forward handpower（N） |
343 |
441 |
441 |
745 |
| Rated forward travel（mm） |
≥52 |
≥55 |
≥28 |
≥30 |
| Rope diameter（mm） |
8.3 |
11 |
16 |
20 |
| Wire rope safety factorload capacity（倍） |
5 |
5 |
5 |
5 |
| Safety factor & static Load capacity |
5 |
5 |
5 |
5 |
| Max traveling load |
1200 |
2400 |
4000 |
8000 |
| Net weight（kg） |
6 |
11 |
22 |
56.5 |
| Size A |
426 |
545 |
660 |
930 |
| B |
235 |
280 |
325 |
480 |
| C |
64 |
97 |
116 |
152 |
| L1(CM) |
|
80 |
80 |
68 |
| L2(CM) |
80 |
120 |
120 |
112 |
