  • Description

Product description

stainless steel chain electric hoist is a commonly used electric hoist, combined with the actual situation of a product produced, this product is made of 304 stainless steel materials, has the advantages of acid and alkali resistance, anti-corrosion, so the use of occasions is more, his tonnage and chain can be customized according to the actual situation of customers, this product has a relatively high safety, the cost of lifting is also relatively low, popular with everyone.

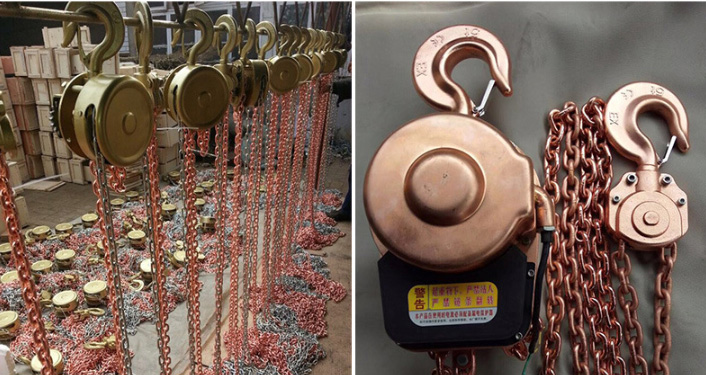

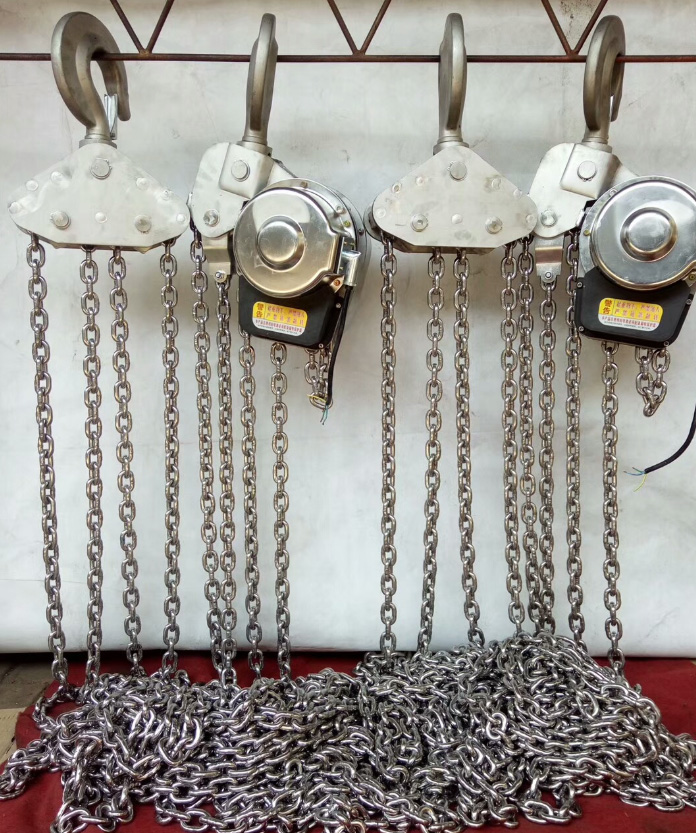

Photo actual

performance advantages

1, easy to maintain stainless steel chain chain electric hoist simple structure, easy to install and maintain, the operation is simple, so the overall cost is relatively low.
2. It is easy to carry, long time to use, light weight, easy to carry, beautiful appearance, small size and durable.
3. Many factories, mines, construction sites, quays, docks, warehouses and so on are used for installing machines, lifting goods
4. The beautiful appearance is made of 304 stainless steel, the finish is very beautiful.

Technical parameters

Rated lifting capacity:       1000KG         2000KG        3000KG        5000KG      7500KG     10000KG

Lifting speed:          2.25m/min     1.85m/min     101m/min      0.9m/min     0.6m/min    0.45m/min

Speed of operation:               20                  20                  20                  20                20              20

Elevation:             3-6m              3-6m              3-6m          3-6m          3-6m      3-6m

Type of motor to run:      YHPE500-4     YHPE500-4         YHPE500-4       YHPE750-4      YHPE750-4      YHPE750-4

Motor type:           YHPE500-4     YHPE500-4         YHPE500-4       YHPE750-4      YHPE750-4      YHPE750-4

Motor Power:              500W           500W             500W             750W           750W         750W

Motor speed:         1380r/min   1380r/min      1380r/min      1380r/min    1380r/min   1380r/min

Power supply voltage:              380v              380v              380v               380v              380v           380v

Weight of the whole machine:              80kg             84kg              96kg              125kg            154kg        198kg
