Product introduction
Ordinary 220V chain electric hoist using a novel design principles produced by a chain electric hoist, the product is developed using German technology, with small size, light weight characteristics. Compared with other electric hoists, the utility model has the advantages of light weight and convenient operation. The product can meet the needs of different environments, with its own power protection function, effectively prevent accidents, the use of one housing. And can be based on customer needs to carry out a variety of specifications and models of customization.

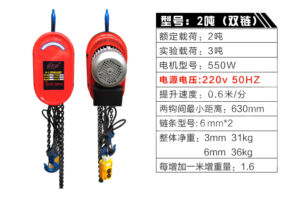

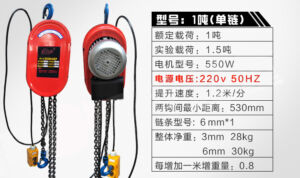

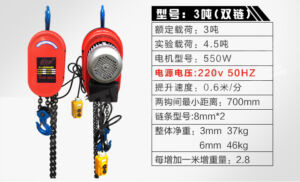

Specifications and models
How it works
The rotation of the motor is decelerated by a reducer. And output speed and power, so that the chain hoist hook up or down. When the motor is broken, the lower hook of the hoist is stopped by the use of the brake motor, and the weight is stopped at the corresponding position.
Performance Advantage
1,Chain electric hoist has up and down travel switch, when the hook up or down to travel limit position, this machine automatically cut off the power, the hook then stop action.
2,24V AC contactor sets the switch voltage to 24V safe low voltage without harm to human. To prevent electric leakage of the flashlight due to various factors and accidents.
3, Adopt phase sequence protection of power supply, when the phase sequence of power supply changes, the phase sequence does not match, the output relay can not be connected, thus protecting the equipment and avoiding the accident.
4, the motor has its own cooling fan, cooling better, can be used for two to three hours.
5, this electric hoist can do single-phase 220V voltage and three-phase 380V, to meet your needs in different environments.
