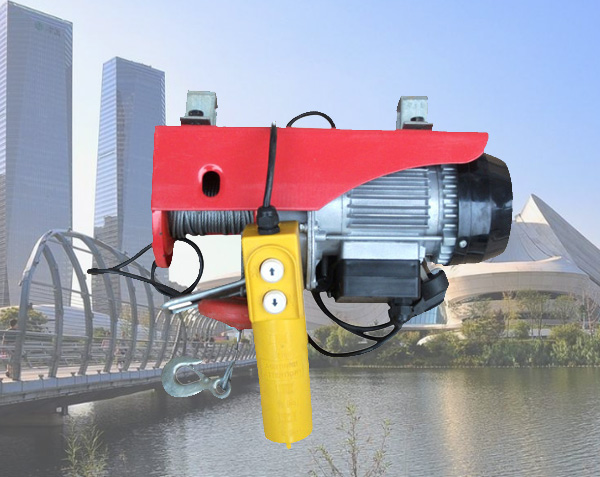

Miniature electric hoist small crane introduction
Micro electric hoist is a small crane we often talk about the micro electric hoist, easy to load and unload a variety of small materials, especially suitable for use at home, so we also called the home with micro electric hoist. The Mini Electric Hoist Crane produced by Li’an has the advantages of simple structure, convenient operation, convenient installation and carrying. It adopts 220V voltage operation, which we can also call civil voltage. Can be fixed use can also be run on the track, reduce labor load, can lift 1000 kg (including 1000 kg) of weight below. It is widely used in warehouse, wharf, batching, hanging basket and narrow space of the workplace, can show the fine quality of micro-electric hoist small crane.
Parameters of mini electric hoist crane
|
Model |
Use methods |
Voltage（V） |
Input Power（W） |
Rated lifting capacity(kg) |
Lifting speed(m/min) |
Elevation(m) |
Quantity per piece(pcs) |
Packing size(cm) |
Gross and net weight(kg) |
|
HGS-B200 PA200A |
Single Hook |
220/230 |
480 |
100 |
10 |
12 |
2 |
47*37*16 |
24/22 |
|
Double Hook |
200 |
5 |
6 |
||||||
|
HGS-B250 PA250A |
Single Hook |
220/230 |
510 |
125 |
10 |
12 |
2 |
47*37*16 |
24/22 |
|
Double Hook |
250 |
5 |
6 |
||||||
|
HGS-B300 PA300A |
Single Hook |
220/230 |
600 |
150 |
10 |
12 |
2 |
47*37*16 |
25/23 |
|
Double Hook |
300 |
5 |
6 |
||||||
|
HGS-B400 PA400A |
Single Hook |
220/230 |
950 |
200 |
10 |
12 |
2 |
52*42*17 |
35/33 |
|
Double Hook |
400 |
5 |
6 |
||||||
|
HGS-B500 PA500A |
Single Hook |
220/230 |
1020 |
250 |
10 |
12 |
2 |
52*42*17 |
35/33 |
|
Double Hook |
500 |
5 |
6 |
||||||
|
HGS-B600 PA600A |
Single Hook |
220/230 |
1200 |
300 |
10 |
12 |
2 |
52*42*17 |
35/33 |
|
Double Hook |
600 |
5 |
6 |
||||||
|
HGS-B700 PA700A |
Single Hook |
220/230 |
1250 |
350 |
8 |
12 |
2 |
52*45*17 |
39/37 |
|
Double Hook |
700 |
4 |
6 |
||||||
|
HGS-B800 PA800A |
Single Hook |
220/230 |
1300 |
400 |
8 |
12 |
2 |
52*45*17 |
39/37 |
|
Double Hook |
800 |
4 |
6 |
||||||
|
HGS-B1000 PA1000A |
Single Hook |
220/230 |
1600 |
500 |
8 |
12 |
1 |
51*34*18 |
33/32 |
|
Double Hook |
1000 |
4 |
6 |
Standard for installation of miniature electric hoists
Fixed electric hoist installation, the need to use hexagon head bolts, flat washers, spring washers and other accessories. Make sure that all parts are properly installed and that the bolts are fastened with a torque wrench. Make sure that the fixing ring is tightly pressed against the mounting rod so that the body of the mini-electric hoist can not move or rotate along the mounting rod.
Troubleshooting of miniature electric hoist
Small crane decelerating motor heating micro electric hoist decelerating motor can not be normal operation or start after the slow operation caused, so if there is such a situation, to check whether it is a circuit breaker or contactor problem, may be the circuit breaker or contactor bias voltage burned out or caused by poor contact. May also be caused by aging and so on.
