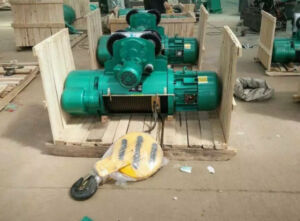

Product introduction
Electric hoist for metallurgical ship has the advantages of compact structure, safety and reliability. These products are widely used in metallurgy, marine and other places, combined with advanced production technology at home and abroad, with advanced production technology, and long service life, easy to maintain, reliable, reliable. To provide you with high-quality price actual trouble electric hoist products.
Performance Advantage
1. A safety brake is added to the wire rope electric hoist, which is directly arranged on the drum to achieve the great safety of lifting products.
2. The utility model has the advantages of compact structure, light weight, safe and reliable, universal parts, strong interchangeability, high lifting capacity, convenient maintenance, etc.
3. At present, it is necessary to improve the working conditions and raise the working efficiency.

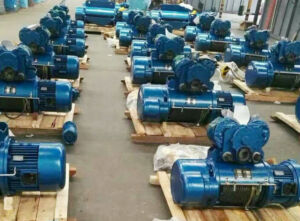

Equipment Price
How much is the price of an electric hoist for metallurgical ships? According to market research, we found that according to the different models, the price difference is also quite large. The general price is between 2,000 and several thousand yuan, the price difference between different manufacturers is also relatively large. Of course, we still need the specific model of the products that incense chooses, as well as the manufacturers that we choose. What are the differences between them? The price difference between different models is also quite large, li’an lifting manufacturer is a large electric hoist manufacturers, to the price is the factory price, if there is a need to visit the manufacturers.
Technical parameters
型号规格 |
HYJI 1T |
HYJI 2T |
HYJI 3T |
HYJI 5T |
HYJI 10T |
||
起升高度 |
米 |
6/9/12/18/24/30 |
6/9/12/18/24/30 |
6/9/12/18/24/30 |
6/9/12/18/24/30 |
9/12/18/24/30 |
|
起升速度(/慢速) |
米/分 |
8 |
8 |
8 |
8 |
7 |
|
运行速度 |
米/分 |
20 |
20 |
20 |
20 |
20 |
|
钢 |
绳直径 |
毫米 |
7.4 |
11 |
13 |
15.5 |
15.5 |
丝 |
丝直径 |
毫米 |
0.34 |
0.5 |
0.6 |
0.7 |
0.7 |
绳 |
结构形式 |
18*7+IWS |
18*7+IWS |
18*7+IWS |
18*7+IWS |
18*7+IWS |
|
工字梁轨道型号 GB706-65 |
16-28b |
20a-32c |
20a-32c |
25a-45c |
32b-63c |
||
工作级别 |
M6 |
M6 |
M6 |
M6 |
M6 |
||
|
型 号 |
YZD 22-4 |
YZD 31-4 |
YZD 32-4 |
YZD 41-4 |
YZD 51-4 |
|
起 |
容量 |
千瓦 |
1.5 |
3 |
4.5 |
7.5 |
13 |
升 |
转速 |
转/分 |
1380 |
1380 |
1380 |
1380 |
1380 |
电 |
相数 |
|
3 |
3 |
3 |
3 |
3 |
动 |
电压 |
伏 |
380 |
380 |
380 |
380 |
380 |
机 |
电流 |
安培 |
4.3 |
7.6 |
11 |
18 |
30 |
|
频率 |
周/秒 |
50 |
50 |
50 |
50 |
50 |
|
型 号 |
YZD 12-4 |
YZD 12-4 |
YZD 12-4 |
YZD21-4 |
YZD21-4 |
|
运 |
容量 |
千瓦 |
0.4 |
0.4 |
0.4 |
0.8 |
0.8 |
行 |
转速 |
转/分 |
1380 |
1380 |
1380 |
1380 |
1380 |
电 |
相数 |
|
3 |
3 |
3 |
3 |
3 |
动 |
电压 |
伏 |
380 |
380 |
380 |
380 |
380 |
机 |
电流 |
安培 |
1.25 |
1.25 |
1.25 |
2.4 |
2.4 |
|
频率 |
周/秒 |
50 |
50 |
50 |
50 |
50 |
接合次数 |
次/时 |
120 |
120 |
120 |
120 |
120 |
|
工作制度 |
JC% |
25% |
25% |
25% |
25% |
25% |
