Product introduction

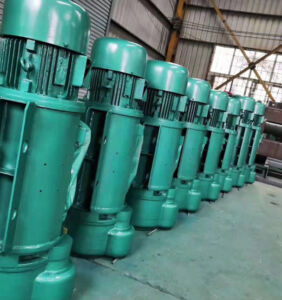

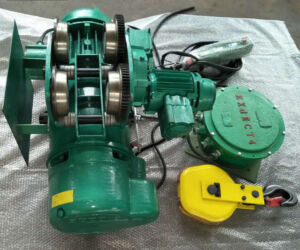

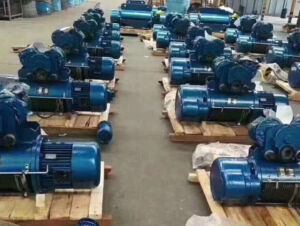

MD1 electric hoist is a kind of wire rope electric hoist, belongs to two-speed electric hoist products, wire rope electric hoist complete parameters, according to customer needs to provide a variety of wire rope electric hoist pictures, the product has a wide range of uses, is based on CD 1 improved, produced a variety of specifications of electric hoist products, reasonable design, with the relevant structure, electric hoist price is reasonable, and the technology and quality is certainly no problem, to provide a variety of use for your reference.
Technical parameters
| Models |
MD1 wire rope electric hoist |
||||||||
| Lifting capacity (ton) | 0.5 | 1 | 2 | 3 | 5 | 10 | |||
| Elevation (m/min) | 6-12 | 6-30 | 6-30 | 6-30 | 6-30 | 6-30 | |||
| Lifting speed (m/min) |
MD1(8/0.8) |
MD1（7/0.7） | |||||||
| Operating Speed (m/min) |
20 |
||||||||
| Wire rope specifications（GB359-64） |
6*37+1 |
||||||||
| I-beam track type（GB706-65） | 16-28b | 16-28b | 20a-32c | 20a-32c | 25a-63c | 25a-63c | |||
| Small radius of circular orbit（m） | 1.5 | 1.5-3.5 | 2-4 | 2-4 | 2-4 | 3-7.2 | |||
| Crane motor | Models | ZD21-4 | ZD22-4 | ZD31-4 | ZD32-4 | ZD41-4 | ZD51-4 | ||
| Rated power (kilowatt) | 0.8 | 1.5 | 3 | 4.5 | 7.5 | 13 | |||
| Rated speed (rpm) | 1380 | 1380 | 1380 | 1380 | 1400 | 1400 | |||
| Rated current (a) | 2.2 | 4 | 7 | 10 | 16.5 | 28 | |||
| Run the motor | Models | ZDY11-4 | ZDY11-4 | ZDY12-4 | ZDY12-4 | ZDY21-4 | ZDY21-4 | ||
| Rated power (kilowatt) | 0.2 | 0.2 | 0.4 | 0.4 | 0.8 | 0.8X2 | |||
| Rated speed (rpm) | 1380 | 1380 | 1380 | 1380 | 1380 | 1380 | |||
| Rated current (a) | 0.7 | 0.7 | 1.3 | 1.3 | 2.2 | 2.2X2 | |||
| Self-weight (kg) | 135-195 | 180-255 | 250-360 | 320-440 | 590-800 | 820-1125 | |||
