Introduction of large tonnage HC electric hoist
Large tonnage HC electric hoist, also known as large tonnage hoist, this product has a good lifting capacity, but also used in factories, mines, railways, docks, warehouses and other places, and service industries, liyou production of large tonnage HC electric hoist for many years, advanced structure, reliable performance, reasonable price, can be combined use, lifting height can be customized, operation level is divided into M3-M6 level.

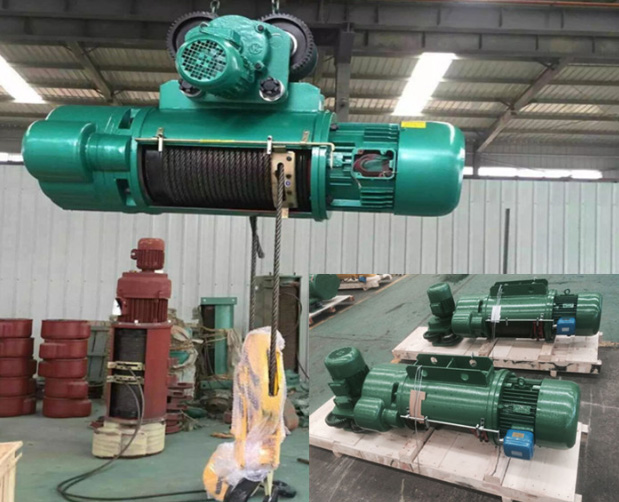

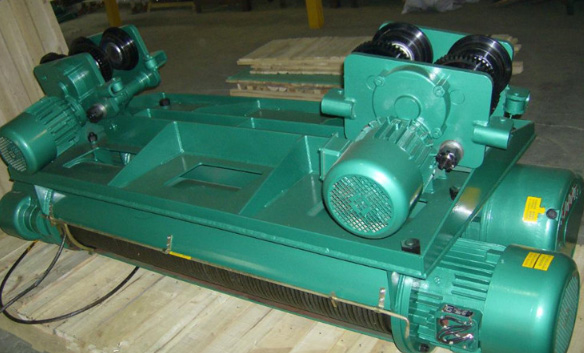

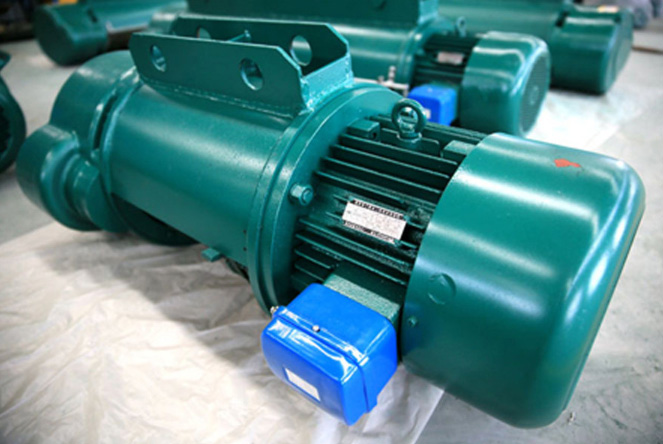

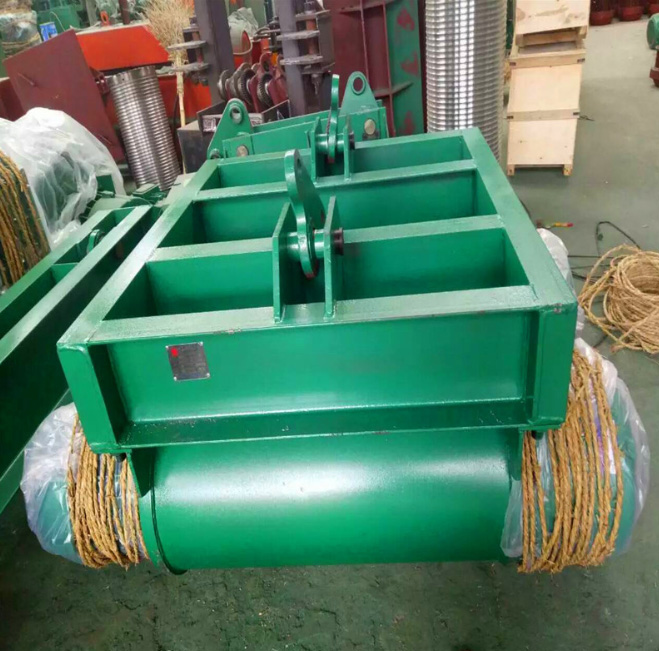

Large tonnage HC electric hoist picture
Product characteristics
1, the use of planetary reducer speed reduction, high transmission efficiency, low noise, compact structure, omit the middle shaft, square appearance, easier to install fixed.
2. The lifting hook is provided with a locking device, which can prevent the rigging from accidentally slipping off.
3. The motor is equipped with thermal protection device, when the motor temperature is too high, the device will automatically cut off the circuit to protect the motor from damage.
4. This machine adopts cam limit, limit precision is high.
5, High Safety and reliability: this machine can choose the load limit protection device, can avoid the adverse consequences caused by overload.
Price of large tonnage HC electric hoist
The price of large tonnage HC electric hoist is around 5,000-10,000 yuan. Of course, it has a lot to do with its configuration and manufacturing technology. It is suggested that the comprehensive manufacturers make a comparison. Li’an has been engaged in the production of electric hoist for many years, equipment needs strict control, spot direct supply, reasonable prices.
Parameters of large tonnage HC electric hoist
| Type | 08 | 16 | ||||||||
| Gourd model | HC/HM082 | HC/HM083 | HC/HM084 | HC/HM162 | HC/HM164 | |||||
| Weight lifting (ton) | 8 | 10 | 12.5 | 16 | 20 | 16 | 20 | 25 | 32 | 40 |
| Elevation (m) | 32 m | 32m | 20 m | 16 m | 16 m | 48 m | 48 m | 24 m | 24 m | 24 m |
| Work level | M4 | M3 | M4 | M4 | M3 | M4 | M3 | M5 | M4 | M3 |
| Multiple of wire rope | 2/1 | 2/1 | 3/1 | 4/1 | 2/1 | 4/1 | ||||
| HC hoist lifting speed (m/min) | 7 | 7 | 4.7 | 3.5 | 5 | 2.5 | ||||
| HM Hoist lifting speed (m/min) | 7/0.7 | 7/0.7 | 4.7/0.47 | 3.5/0.35 | 5.0/0.96 | 2.5/0.48 | ||||
| HC hoist lifting motor (kW) | 13.0 | 13.0 | 13.0 | 18.5 | 18.5 | |||||
| HM Hoist Motor (kW) | 13.0/1.5 | 13.0/1.5 | 13.0/1.5 | 18.5/3.0 | 18.5/3.0 | |||||
| Run the motor(kW) | 2×0.5 | 2×0.5 | 2×0.8 | 2×0.8 | 2×0.8 | 4×0.8 | ||||
| Stationary gourd(A)型 | √ | √ | √ | √ | √ | √ | ||||
| Monorail trolley gourd (B)型 | √ | √ | √ | √ | ||||||
