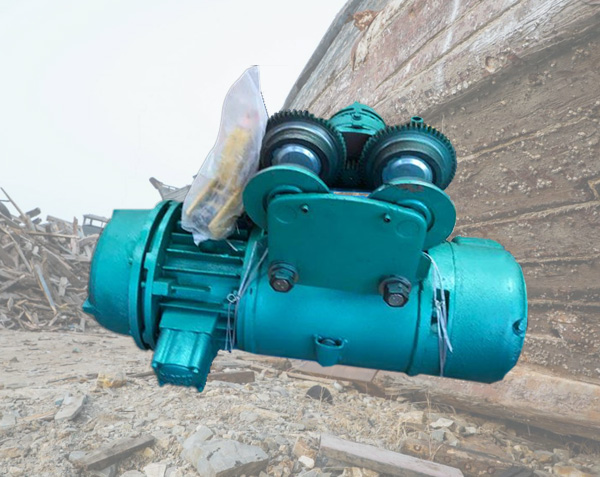

Product introduction
Li’an manufacturers have been specializing in the production of metallurgical electric hoists for many years. The specifications and models of metallurgical electric hoists are complete, and their prices are reasonable. The electric hoists designed are all quite good and are suitable for various occasions, work level to MB, is in CD1 and MD1 on the basis of the transformation, and easy to operate and install, more convenient maintenance, welcome by everyone.
Technical parameters
| Model specifications | HY1T | HY2T | HY3T | HY5T | HY10T | ||
| Elevation | m | 6/9/12/18/24/30 | 6/9/12/18/24/30 | 6/9/12/18/24/30 | 6/9/12/18/24/30 | 9/12/18/24/30 | |
| Lifting speed (/slow speed) | M/min | 8 | 8 | 8 | 8 | 7 | |
| Speed | M/min | 20 | 20 | 20 | 20 | 20 | |
| Steel | Diameter of the rope | Mm | 7.4 | 11 | 13 | 15.5 | 15.5 |
| Silk | Diameter of silk | Mm | 0.34 | 0.5 | 0.6 | 0.7 | 0.7 |
| Rope | Structural form | 18*7+IWS | 18*7+IWS | 18*7+IWS | 18*7+IWS | 18*7+IWS | |
| I-beam track typeGB706-65 | 16-28b | 20a-32c | 20a-32c | 25a-45c | 32b-63c | ||
| Work level | M6 | M6 | M6 | M6 | M6 | ||
| Model | YZD 22-4 | YZD 31-4 | YZD 32-4 | YZD 41-4 | YZD 51-4 | ||
| Up | Capacity | 千瓦 | 1.5 | 3 | 4.5 | 7.5 | 13 |
| L | Speed | 转/分 | 1380 | 1380 | 1380 | 1380 | 1380 |
| Electricity | Phase number | 3 | 3 | 3 | 3 | 3 | |
| Of the project | Voltage | 伏 | 380 | 380 | 380 | 380 | 380 |
| Machine | Current | 安培 | 4.3 | 7.6 | 11 | 18 | 30 |
| Frequency | 周/秒 | 50 | 50 | 50 | 50 | 50 | |
| Model | YZD 12-4 | YZD 12-4 | YZD 12-4 | YZD21-4 | YZD21-4 | ||
| Transport | Capacity | 千瓦 | 0.4 | 0.4 | 0.4 | 0.8 | 0.8 |
| All right | Speed | 转/分 | 1380 | 1380 | 1380 | 1380 | 1380 |
| Electricity | Phase number | 3 | 3 | 3 | 3 | 3 | |
| Of the project | Voltage | 伏 | 380 | 380 | 380 | 380 | 380 |
| Machine | Current | 安培 | 1.25 | 1.25 | 1.25 | 2.4 | 2.4 |
| Frequency | 周/秒 | 50 | 50 | 50 | 50 | 50 | |
| Number of splices | 次/时 | 120 | 120 | 120 | 120 | 120 | |
| Work system | JC% | 25% | 25% | 25% | 25% | 25% | |
