Product introduction
HSZ hand chain is a kind of hand chain. It is a tool that relies on hand chain. At present, Li’an has combined the actual situation to produce a product that conforms to the current use. This product has light hand chain force and low cost, moreover the product quality is reliable, may apply in each place to carry on the use. Especially in an environment without power. The HSZ hand chain gourd produced by Liyou Lifting Co. , Ltd. is affordable in price and abundant in supply.Photo taken

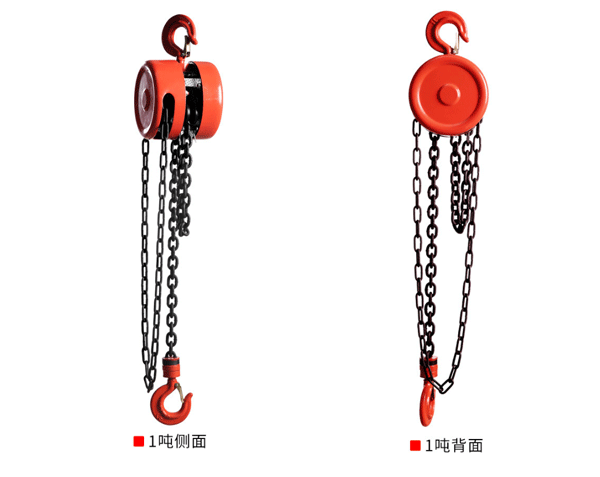

1 ton hand chain gourd
1 ton hand chain gourd

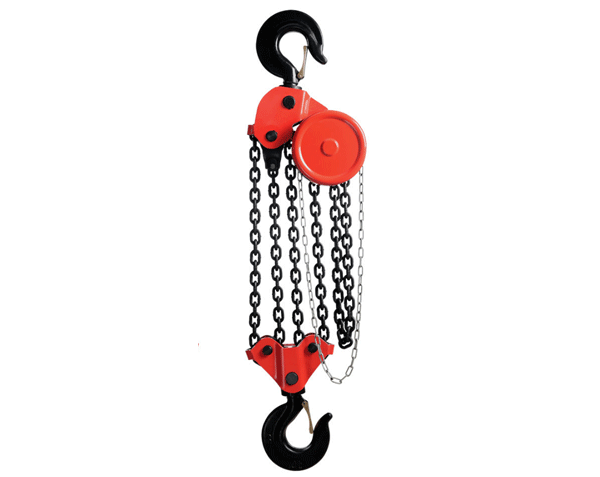

10 tons hand chain gourd

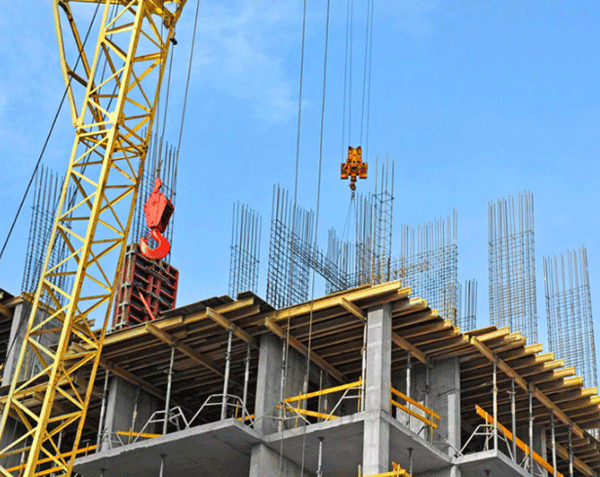

Applications
HSZ hand chain hoist advantage
1.This product can be used to transport small equipment, or a short distance transport.
2,.the shell is strong, wear-resistant, and high safety performance.
3. The transportation is smooth and will stop automatically if overloading occurs.
4. Adopt high strength chain, meet the current production standard.
Technical parameters
| Models | VE
1/2 |
VE1 | VE1
1/2 |
VE2 | VE3 | VE5 | VE10 | VE20 | |
| Tons of lifting capacity | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 20 | |
| Standard lifting height meter | 2.5 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 | |
| Test load ton | 0.63 | 1.25 | 2 | 2.5 | 4 | 6.3 | 12.5 | 25 | |
| Measure small distance between hooks, mm | 255 | 306 | 368 | 444 | 486 | 616 | 700 | 1000 | |
| When loaded, the chain pulls, Newton | 221 | 304 | 343 | 314 | 343 | 383 | 392 | 392 | |
| Line number of lifting chain | 1 | 1 | 1 | 2 | 2 | 2 | 4 | 8 | |
| Round steel diameter of lifting chain, MM | 6 | 6 | 8 | 6 | 8 | 10 | 10 | 10 | |
| Main dimensions in millimeters | A | 125 | 147 | 183 | 147 | 183 | 215 | 360.5 | 585 |
| B | 111 | 126 | 141 | 126 | 141 | 163 | 163 | 191 | |
