Product introduction
HS-C type hand hoist combines the characteristics of the traditional hand hoist, the use of higher coefficient, and beautiful appearance, the use of efficiency is relatively high, hand hoist can also be made of upper and lower hook frame spray, the surface is more smooth. High strength, compact structure, enhanced anti-collision ability, can effectively protect the internal parts.

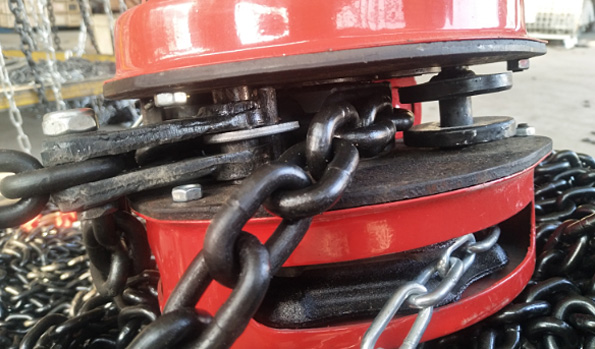

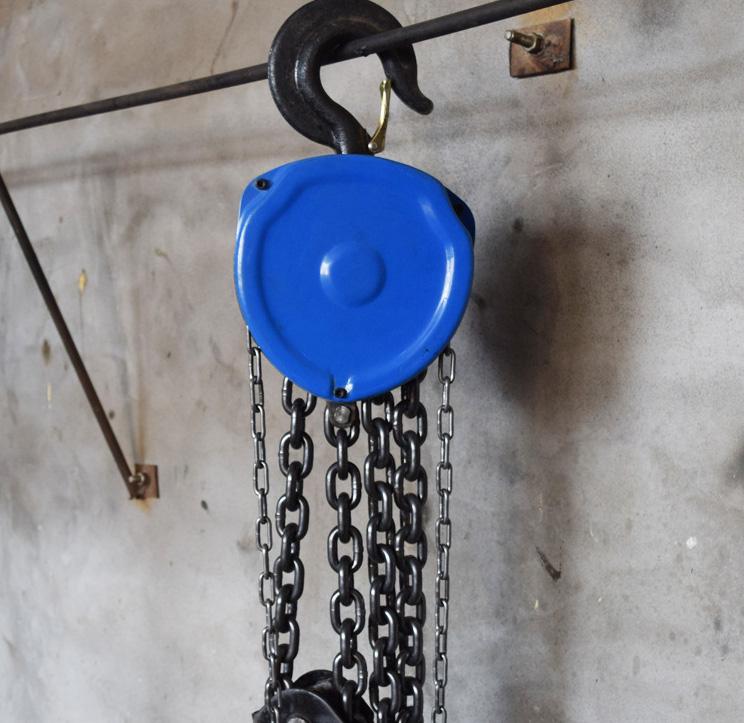

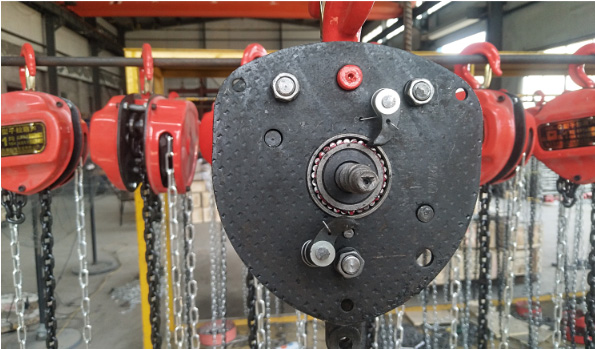

Product display
Performance characteristics
1, according to customer requirements for customization, reasonable structure.
2. The shell material of the hand hoist is high-quality alloy steel, strong and wear-resistant, high safety performance.
3, adapt to high-intensity, high-frequency working environment, and extend the service life of hand hoist.
HS-C hand chain hoist price
The HS-C type hand chain hoist is one that is used more frequently. The price of this type of hand chain hoist is usually a few hundred yuan. If the price of a small-tonnage hand chain hoist product is usually a few tens of yuan, the models are different, the price is different, the specific product price according to the desired parameters to determine.
Technical parameters
|
Models |
HS-C 1/2 |
HS-C1 |
HS-C1 1/2 |
HS-C2 |
HS-C3 |
HS-C5 |
HS-C10 |
HS-C20 |
|
|
Weight lifting Ton |
0.5 |
1 |
1.5 |
2 |
3 |
5 |
10 |
20 |
|
|
Standard lifting height M |
2.5 |
2.5 |
2.5 |
2.5 |
3 |
3 |
3 |
3 |
|
|
Test load Ton |
0.75 |
1.5 |
2.25 |
3 |
4.5 |
7.5 |
12.5 |
25 |
|
|
Small distance between hooks Mm |
255 |
306 |
368 |
444 |
486 |
616 |
700 |
1000 |
|
|
Chain pull when fully loaded Newton |
221 |
304 |
343 |
314 |
343 |
383 |
392 |
392 |
|
|
Line number of lifting chain |
1 |
1 |
1 |
2 |
2 |
2 |
4 |
8 |
|
|
Round steel diameter of lifting chain Mm |
6 |
6 |
8 |
6 |
8 |
10 |
10 |
10 |
|
|
Main dimensions Mm |
A |
125 |
147 |
183 |
147 |
183 |
215 |
360.5 |
585 |
|
B |
111 |
126 |
141 |
126 |
141 |
163 |
163 |
191 |
|
