Product introduction
HC square wire rope electric hoist refers to the use of domestic and foreign professional standards, through pulley group ratio and motor and other changes, can be combined lifting weight 16 T-100 t, lifting height 6 M-96 M, working level M3-M6 series electric hoist. HC electric hoist with small size, light weight, simple operation, easy to use and other characteristics, for industrial and mining enterprises, storage terminals and other places. This product strictly according to the National 3 package implementation, product quality by the People’s insurance company of China (PICC) underwriting, please rest assured that use.
Job characteristics
HC Square electric hoist is a large-tonnage wire rope electric hoist, lifting capacity of 16-100 tons. HC type electric hoist operating conditions for open-air use, Gebin full of dust and corrosion, continuous working system, 330 days a year, 24 hours a day. HC electric hoist should meet the following technical requirements: mechanical requirements: model: HCI20G. Oo, 120KN hoisting mechanism, holding cable length 120m, wire rope length not less than 170m, single out rope, three groups of pulleys, single rope pulling force: 12T, lifting speed: slow speed 2 m/min, fast 20m/min, wire rope out direction: out rope angle about 41.5 ° , top side out rope, drum groove rotation and out rope position to ensure that the rope does not bite. Work system: M4, total weight: 7600kg, each electric hoist to provide mechanical braking device. Provide overload device, braking distance not more than 10mm (on the arm) , in addition to overload alarm function, there should be light load parking function, light load of 1.5-0.5 t hoist must stop working.
Details

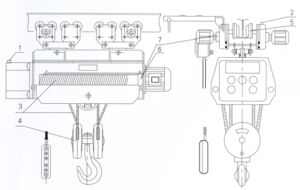

1, the use of planetary reducer speed reduction, high transmission efficiency, low noise, compact structure, omit the middle shaft, square appearance, easier to install fixed. 2. The lifting hook is provided with an I locking device, which can prevent the rigging from accidentally slipping off. 3. The motor is equipped with thermal protection device, when the motor temperature is too high, the device will automatically cut off the circuit to protect the motor from damage. 4. This machine adopts cam limit, limit precision is high. 5, High Safety and reliability: this machine can choose the load limit protection device, can avoid the adverse consequences caused by overload.
