Product introduction
The hanging type miniature electric hoist is produced by introducing advanced technology. Through a series of improvements, such hanging type miniature electric hoist products are produced, generally used in warehouses, storage areas, housing areas, construction sites, workplaces and other places, hanging miniature electric hoist performance temperature, and simple operation, reasonable structure, popular.

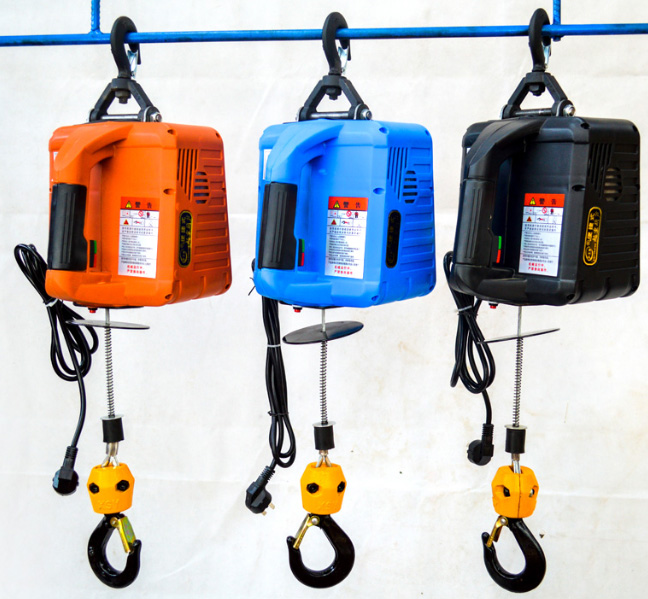

Photo taken
Advantages of suspended miniature electric hoist
1, cheap Li’an production of miniature electric hoist than ordinary electric hoist much cheaper, and reliable quality, easy to miniature, popular.
2,220V Voltage Drive, with a 360-degree rotation of the safety hook.
3. Micro electric hoist with emergency stop switch, forced break limit switch, excellent safety performance.

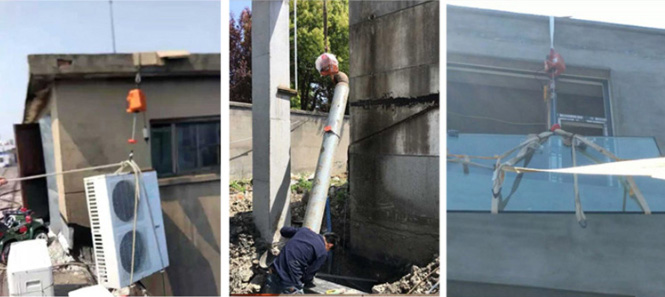

Use case presentations
Technical parameters
| Model | HXS-100F | HXS-150F | HXS-200F | HXS-250F | |
| rated voltage | V | AC 100/110/120 220/230/240 50/60Hz | |||
| Input Power | W | 580 | 780 | 1050 | 1200 |
| Rated load | Kg | 100 | 150 | 200 | 250 |
| Diameter of wire rope | mm | φ 3.8 | φ 4.2 | ||
| Lifting speed | m/min | 15 | 12 | ||
| Elevation | m | 20 | |||
| Gross/net weight | kg | 28/27 | 30/29 | ||
| Packing size | mm | 425 x 365 x 370 | |||
