Introduction of hand chain hoist bracket
Li’an lifting focus on the production of hand hoist support customization, the product can be customized according to the specific needs of customers, the product general lifting height of 3 meters, 4 meters. There is a specific lifting weight, suitable for a variety of hand hoist products.

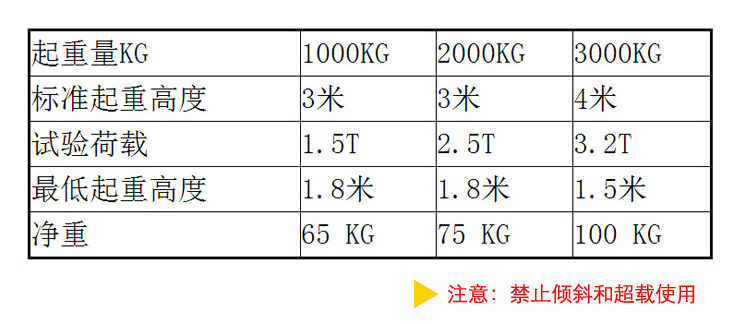

Parameters of hand chain hoist bracket

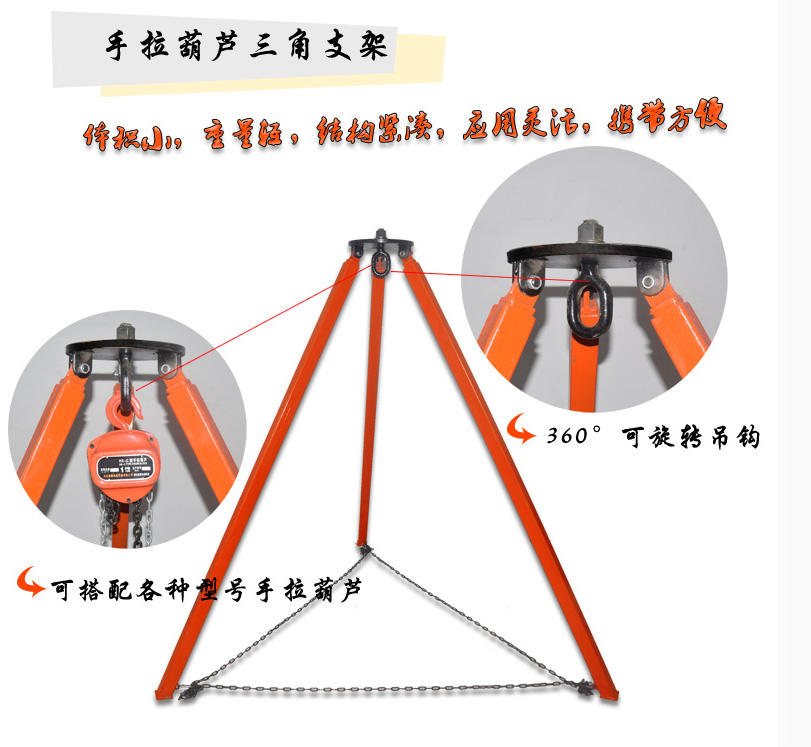

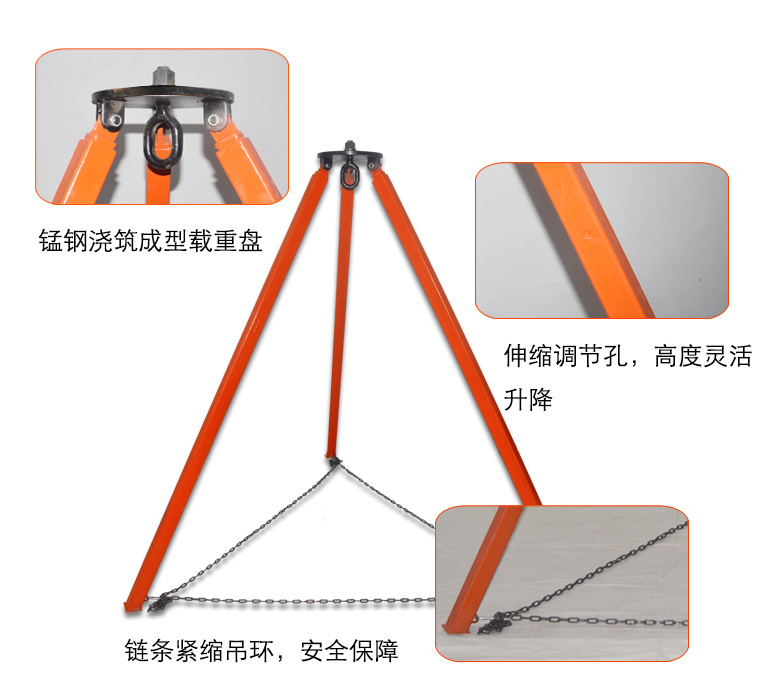

Hand-held gourd stand display

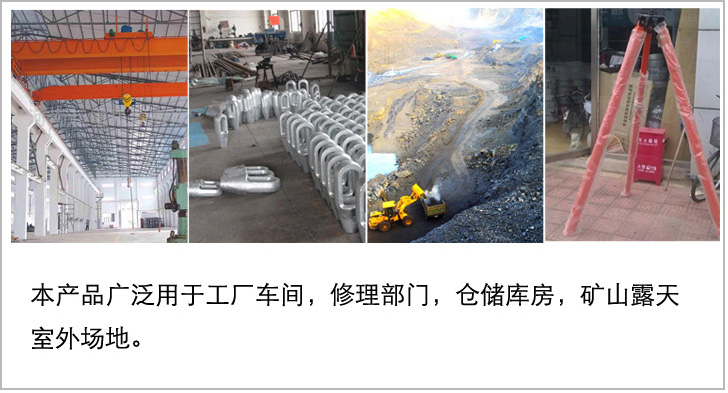

Environment
Widely used in factory workshops, repair departments, warehouses, mines and other outdoor occasions.
Lifting construction scheme of hand chain hoist
1. Steel support design and manufacture: steel support adopts diameter 70, thickness 4mm steel pipe erecting, steel support into 60 ° inclination, in order to prevent the steel support toppling, fixed steel column, l60 angle steel is used to make 1.5 m tripod support. The steel tube and the bottom of tripod are fixed in the gap between the rail and the rail foundation.
2. The connection between the steel bracket and the hand hoist: a steel wrench of 8mm thickness is welded on the steel bracket as the connection with the hand hoist.
3. Hand hoist lifting coordination: frozen water pipe take-off and landing equipment using hand hoist, hand hoist must be produced by regular manufacturers, rated load 1000kg, working load 750kg, this hanger has only two hand-held hoists to lift the frozen water pipe horizontally at a constant speed of 5cm/min.
4. Welding of chilled water pipe: the chilled water pipe should be checked to the groove before welding, the groove should be smooth, no Burr, bump, crack and other defects, the slope should meet the design requirements, and the cold water pipeline should be checked before welding, to ensure that the frozen water pipeline to maintain the level, and no use at the welding point, after welding in accordance with the“Pressure pipeline welding acceptance code” acceptance.
5. After hoisting, the operators will inspect each part of the fishing tackle one by one, the connection between each part should be firm, the deformation of the object and the non-damage of the chain can be put into use.
