Product introduction
Fixed miniature electric hoist is a kind of miniature electric hoist, this product cover is strong, wear-resistant, excellent material, generally applicable to the family, industry, generally divided into two categories, wire rope, miniature electric chain hoist.
Because of its wide range of use in electronics, automobiles, shipbuilding, workpiece assembly industry, so in the market is more fixed micro-electric hoist, the equipment is combined with the actual use of the production of targeted products, so favored by the majority of customers.
Performance advantages
This product is flexible in design and easy to operate.
2. When overload occurs, touch the stopper and it will stop working automatically.
3, two voltages, 220V and 380V can be used according to customer needs.
4, micro-electric hoist can be used 4 times in normal full-load lifting motor department heating! It also takes a long time to use.
5, motor housing, gearbox housing are specialized processing thickness treatment. They are strictly tested before they leave the factory. Ensure non-conformity and non-delivery.
Live action

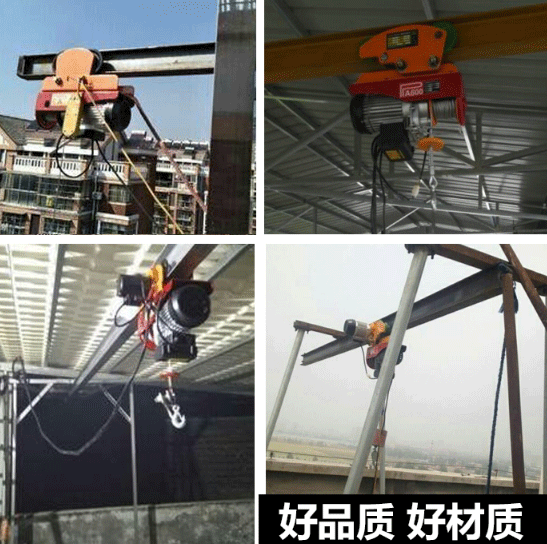

The running type miniature electric hoist is used

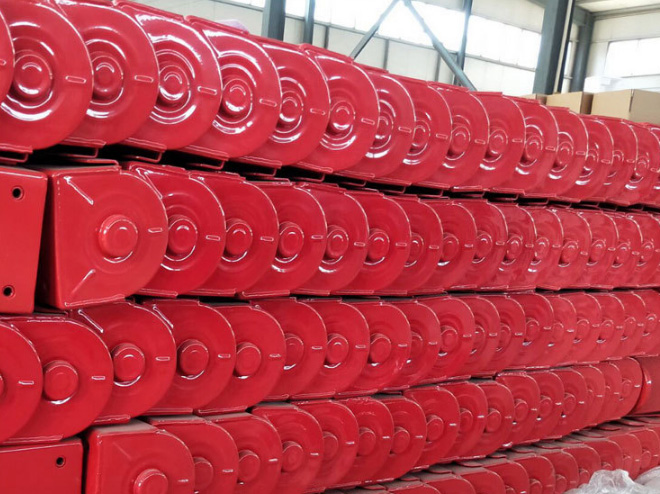

Miniature electric hoist-shell

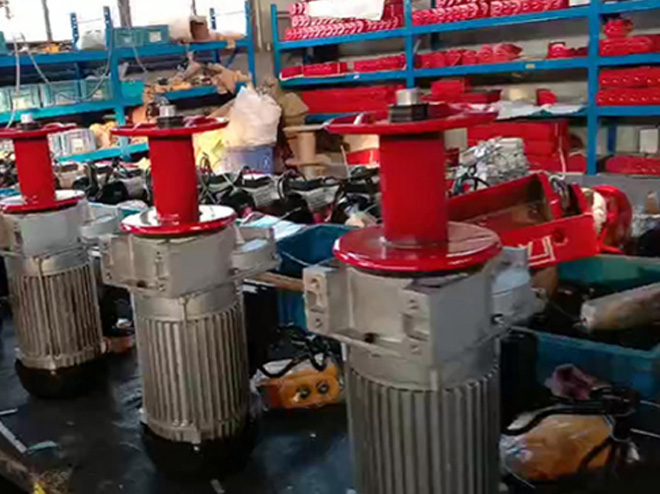

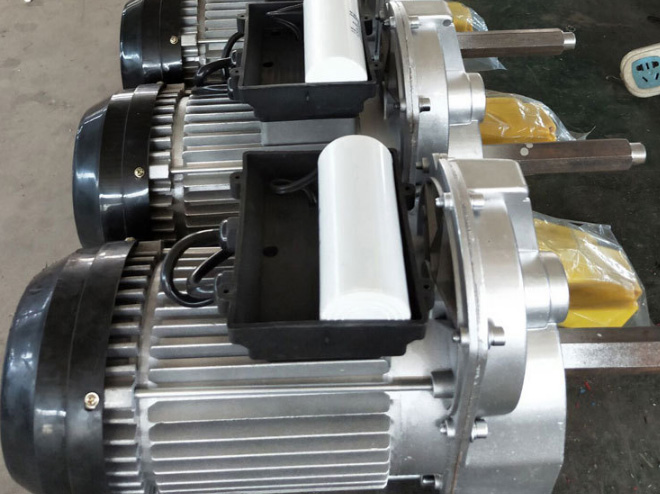

Miniature electric hoist-motor
Miniature electric hoist operating table
Price analysis
Fixed miniature electric hoist is something that users pay more attention to. Its price is affected by various situations, such as manufacturers, markets, regions, etc. . The fixed miniature electric hoist produced by Li’an has always been clearly marked and transparent in price, and reasonable, electric hoist manufacturers more, so the competition is also recorded, my company’s production of fixed micro-electric hoist to meet the needs of different customers, specific prices can contact Li’an.
Technical parameters
|
Model |
Use methods |
rated voltage（V） |
Input Power（W） |
Rated lifting capacity(kg) |
Lifting speed(m/min) |
Elevation(m) |
Quantity per piece(pcs) |
Packing size (cm) |
Gross and net weight(kg) |
|
HGS-B200 PA200A |
Single Hook |
220/230 |
480 |
100 |
10 |
12 |
2 |
47*37*16 |
24/22 |
|
Double Hook |
200 |
5 |
6 |
||||||
|
HGS-B250 PA250A |
Single Hook |
220/230 |
510 |
125 |
10 |
12 |
2 |
47*37*16 |
24/22 |
|
Double Hook |
250 |
5 |
6 |
||||||
|
HGS-B300 PA300A |
Single Hook |
220/230 |
600 |
150 |
10 |
12 |
2 |
47*37*16 |
25/23 |
|
Double Hook |
300 |
5 |
6 |
||||||
|
HGS-B400 PA400A |
Single Hook |
220/230 |
950 |
200 |
10 |
12 |
2 |
52*42*17 |
35/33 |
|
Double Hook |
400 |
5 |
6 |
||||||
|
HGS-B500 PA500A |
Single Hook |
220/230 |
1020 |
250 |
10 |
12 |
2 |
52*42*17 |
35/33 |
|
Double Hook |
500 |
5 |
6 |
||||||
|
HGS-B600 PA600A |
Single Hook |
220/230 |
1200 |
300 |
10 |
12 |
2 |
52*42*17 |
35/33 |
|
Double Hook |
600 |
5 |
6 |
||||||
|
HGS-B700 PA700A |
Single Hook |
220/230 |
1250 |
350 |
8 |
12 |
2 |
52*45*17 |
39/37 |
|
Double Hook |
700 |
4 |
6 |
||||||
|
HGS-B800 PA800A |
Single Hook |
220/230 |
1300 |
400 |
8 |
12 |
2 |
52*45*17 |
39/37 |
|
Double Hook |
800 |
4 |
6 |
||||||
|
HGS-B1000 PA1000A |
Single Hook |
220/230 |
1600 |
500 |
8 |
12 |
1 |
51*34*18 |
33/32 |
|
Double Hook |
1000 |
4 |
6 |
