Product introduction
The explosion-proof hand chain gourd is made by our company by absorbing the technology from home and abroad. Combined with some domestic actual conditions, we have engaged in such a product that conforms to the current use, the hand chain hoist is widely used in various potentially dangerous environments such as chemical industry, electric power, railway and so on.

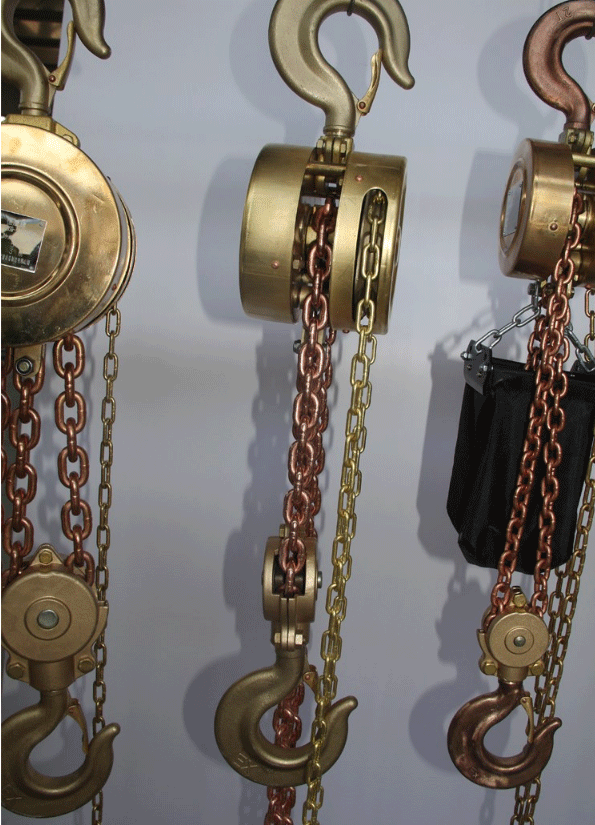

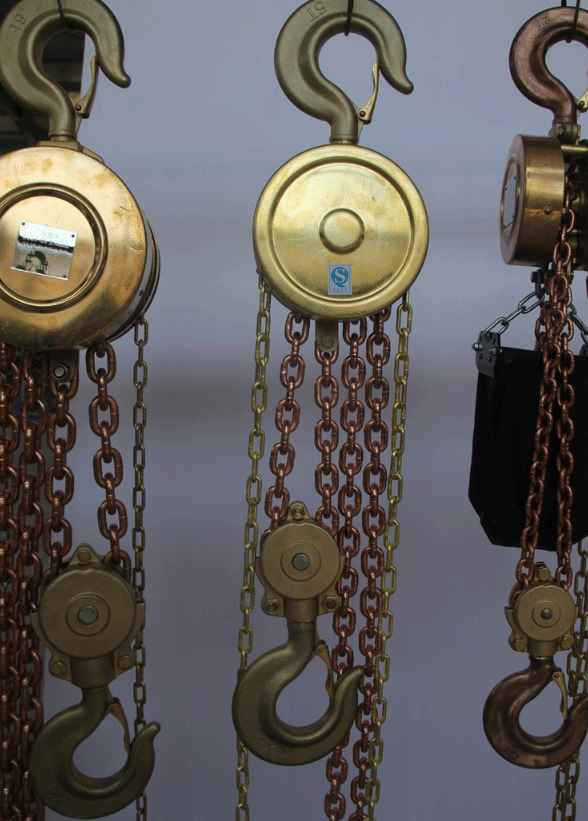

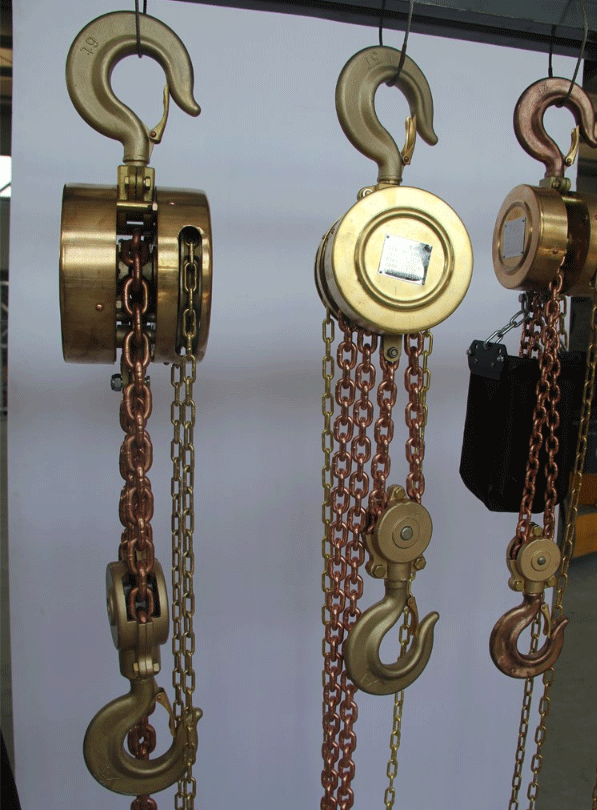

Product Pictures
Performance characteristics
1. Lightweight, easy to carry and use.
2, the appearance is beautiful, the size is smaller, the use time is longer.
3, chain can be customized according to customer needs.
Equipment Price
Engaged in explosion-proof hand hoist manufacturers for many years, production of products without middlemen, small profits and quick turnover, from the point of view of customers, you can contact a variety of hand hoist online preferential offers, in addition, we can also support the customization according to the customer’s needs, to create high-quality products.
Technical parameters
|
Specifications and models |
0.5T |
1T |
1.5T |
2T |
2.5T |
3T |
3.5T |
4T |
4.5T |
|
Load-bearing capacity(t) |
0.5 |
1 |
1.5 |
2 |
2.5 |
3 |
3.5 |
4 |
4.5 |
|
A rise in altitude(mm) |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
|
Test Load(KN) |
12.5 |
12.5 |
18.8 |
25 |
25 |
37.5 |
37.8 |
45 |
45 |
|
Small clearance height(mm) |
280 |
300 |
360 |
380 |
380 |
400 |
400 |
470 |
470 |
|
The pull force required for large loads(N) |
160 |
310 |
360 |
320 |
320 |
360 |
380 |
380 |
