Product introduction
Explosion-proof chain electric hoist is a kind of convenient hoist used in special occasions, which is made by combining the production technology at home and abroad, shell products are generally easy to remove and operate, and safe, easy to install. Can be used in a variety of areas, by everyone’s welcome.

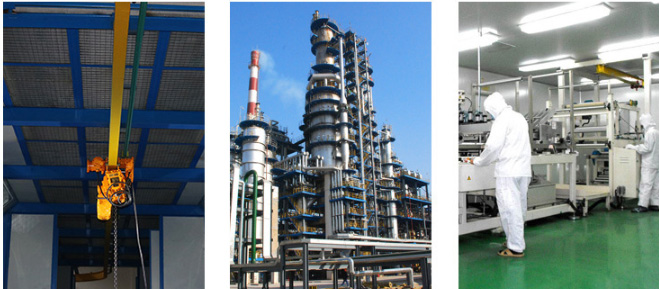

Customer site map
We all know that the use of explosion-proof chain electric hoist is a certain adjustment, the altitude can not exceed 2000m, humidity and temperature are required, the following look at the scene.
Explosion-proof chain electric hoist manufacturers recommend

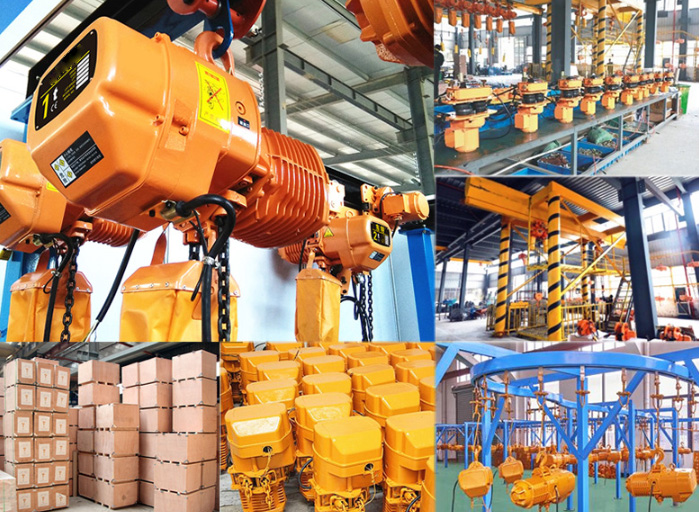

The following picture is our explosion-proof electric hoist production workshop, which electric hoist of a variety of models, can meet different needs, there are conventional and non-standard, no matter what kind of friends can be customized according to your needs, if interested, you can come to the factory to visit, after all, seeing is believing.
Explosion-proof price of gourd
Due to the different specifications of the explosion-proof chain electric hoist, the chain they need is also different, so their production costs are different, configuration, and so on, there are certain differences, many people are quite concerned about his price. Many people have inquired about the price of explosion-proof electric hoist. You can contact the manufacturers for details. We can provide you with high-quality quotes, general explosion-proof gourd will be more expensive than ordinary electric gourd prices, after all, the use of different environments.
Technical parameters
|
Models
|
Weight liftingt
|
Number of lifting chains
|
Elevation m
|
Lifting speed m/min
|
Speed of operation m/min
|
Lifting motor
Power/speed
|
Run the motor
Power/speed
|
|
01-01
|
1
|
1
|
3~30
|
6.8
|
10/20
|
1.5kw/1430r/min
|
0.75kw/1430r/min
|
|
02-02
|
2
|
1
|
3~30
|
6.8
|
10/20
|
3.0kw/1430r/min
|
0.75kw/1430r/min
|
|
03-01
|
2
|
2
|
3~30
|
3.4
|
10/20
|
1.5kw/1430r/min
|
0.75kw/1430r/min
|
|
03-02
|
3
|
1
|
3~30
|
5.4
|
10/20
|
3.0kw/1430r/min
|
0.75kw/1430r/min
|
|
03-03
|
3
|
2
|
3~30
|
3.4
|
10/20
|
3.0kw/1430r/min
|
0.75kw/1430r/min
|
|
05-02
|
5
|
2
|
3~30
|
2.7
|
10/20
|
3.0kw/1430r/min
|
0.75kw/1430r/min
|
|
7.5-03
|
7.5
|
3
|
3~30
|
1.8
|
10/20
|
3.0kw/1430r/min
|
0.75kw/1430r/min
|
|
10-04
|
10
|
4
|
3~30
|
2.7
|
10/20
|
3.0kw*2/1430r/min
|
0.75kw/1430r/min
|
|
15-06
|
15
|
6
|
3~30
|
1.8
|
10/20
|
3.0kw*2/1430r/min
|
0.75kw*2/1430r/min
|
|
20-08
|
20
|
8
|
3~30
|
1.3
|
10/20
|
3.0kw*2/1430r/min
|
0.75kw*2/1430r/min
|
|
25-10
|
25
|
10
|
3~30
|
1.1
|
10/20
|
3.0kw*2/1430r/min
|
0.75kw*2/1430r/min
|
|
30-12
|
30
|
12
|
3~30
|
0.9
|
10/20
|
3.0kw*2/1430r/min
|
0.75kw*4/1430r/min
|
|
35-16
|
35
|
16
|
3~30
|
0.7
|
10/20
|
3.0kw*2/1430r/min
|
0.75kw*4/1430r/min
|
