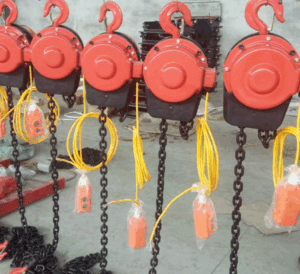

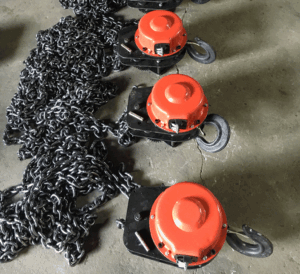

Product introduction
DHS chain electric hoist is the current electric hoist in the higher frequency of use, but also the upgrade structure faster, in order to better use and improve, so his efficiency and load has been greatly improved, has been greatly improved, reducing the mild labor, used for low-speed small stroke of material handling, equipment installation, mining and engineering construction, etc.
Performance characteristics
1, the use of a long time this product for his chain and cover and motor as a whole has a big improvement, so his work efficiency is higher, the use of a long time, at the same time reduce the cost of use.
2, reasonable design structure this product has a good structure and appearance, produced by the product toughness, and easy to use safe operation.
3. The lifting speed is fast, the load capacity is raised through the improvement of his motor and chain, and so on, the operation is convenient. It is a new type of electric hoist with high efficiency.
Technical parameters
| Models |
1T |
2T |
3T |
5T |
10T |
| Rated lifting capacity |
1000kg |
2000kg |
3000kg |
5000kg |
10000kg |
| Lifting speed |
2.25m/min |
1.85m/min |
1.1m/min |
0.9m/min |
0.45m/min |
| Elevation |
3-9m |
3-9m |
3-6m |
3-6m |
6-9m |
| Type of disc motor |
XHPE500-4 |
XHPE750-4 |
XHPE500-4 |
XHPE750-4 |
XHPE750-4 |
| Motor Power |
500w |
750w |
500w |
750w |
750w |
| Motor speed | 1380r/m | 1380r/m | 1380r/m |
1380r/m |
|
| Power supply voltage |
380w |
380w |
380w |
380w |
380w |
| Weight of the whole machine | 3m.36kg | 45kg | 42kg | 57kg | 115kg |
| 6m.40kg | 52kg | 50kg | 70kg |
142kg |
