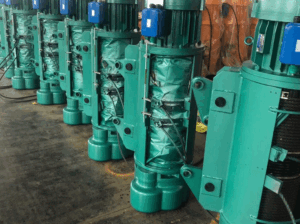

Product introduction
CD1 wire rope electric hoist is a kind of wire rope electric hoist, the product is composed of many parts, including motor, construction and transportation ball, control box and wire rope, etc. , this product is widely used in factories, mines, warehouses and other places. Get a good use of the effect, significantly improve the efficiency of the work.
Performance Advantage
1, short installation cycle: general installation of a wire rope electric hoist is more complex, now the production of most of these wire rope hoist assembly, then he went to combine it with the running car and it was ready to use, saving the installation time. 2, flexible operation, can be used with i-steel, manual single beam, etc. , lifting a variety of equipment. The utility model has the advantages of stable transportation, simple and convenient operation, and convenient maintenance. 4. The widely used environment: temperature-2OC-40 ° C, relative humidity ≤85% , altitude below 1000m, the suitable power supply is AC three-phase, 50Hz, 380V.
Technical parameters
| Models |
0.25TON |
0.5TON |
1TON |
2TON |
3TON |
5TON |
10TON |
|
Tons of lifting capacity |
0.25 |
0.5 |
1 |
2 |
3 |
5 |
10 |
|
Standard lifting height meter |
3-9 |
6-12 |
6-30 |
6-30 |
6-30 |
6-30 |
6-30 |
|
Lifting speed m/min |
8(8/0.8) |
8(8/0.8) |
8(8/0.8) |
8(8/0.8) |
8(8/0.8) |
8(8/0.8) |
7(7/0.7) |
|
Running speed m/min |
20(30) |
||||||
|
Wire rope type |
6×19-3.6 |
6×37-4.8-180 |
6×37-7.4-180 |
6×37-11-155 |
6×37-13-170 |
6×37-15-200 |
6×37-15-200 |
|
I-beam track type |
16-22b |
16-28b |
16-28b |
20a-32c |
20a-32c |
25a-63c |
28a-63c |
|
Circular track with small radius M |
0.8 |
1.5 |
1.5-4 |
2-4 |
2-4 |
2.5-5 |
3.5-9 |
|
Voltage Volts |
380 |
380 |
380 |
380 |
380 |
380 |
380 |
|
Frequency, Hertz |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
|
Phase number |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
