Product introduction
The 2-ton explosion-proof electric hoist, which we call explosion-proof hoist for short, is different from the ordinary electric hoist. It can be used in some special occasions, and it has advanced structure and excellent performance, is currently a relatively high frequency of use of a product, this product has a unique performance advantage and other characteristics, his tonnage is diverse, generally used in mines, offshore oil platforms and other places.

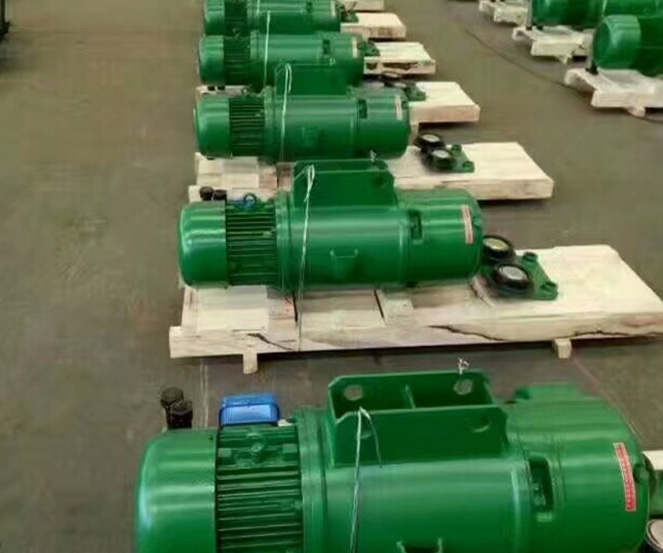

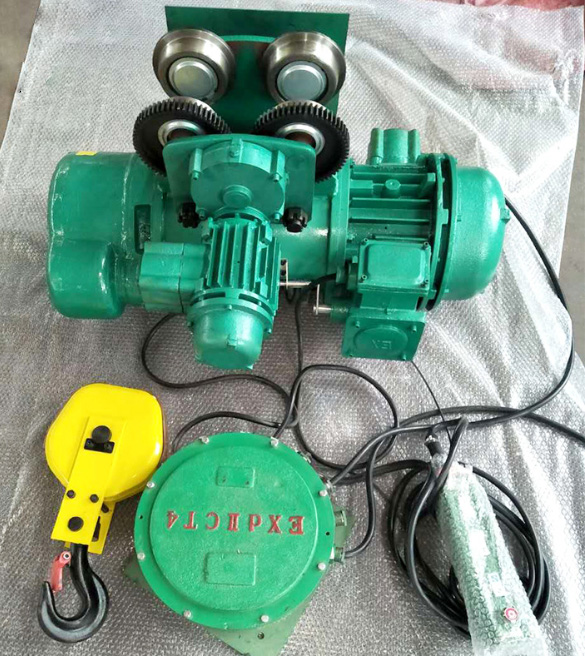

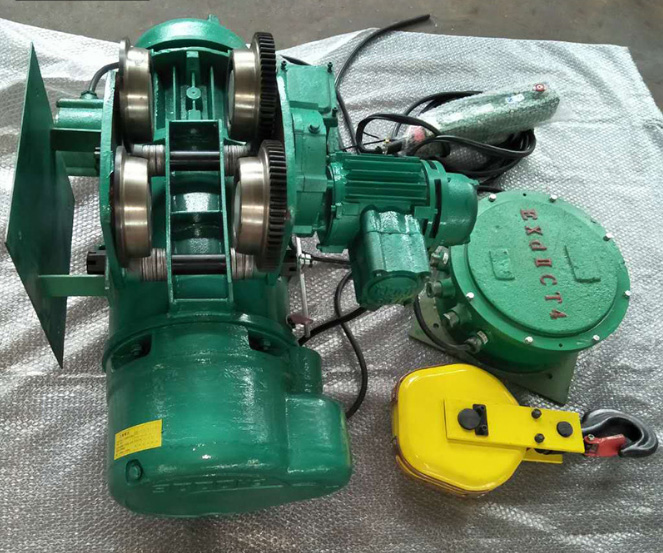

2 tons explosion-proof electric hoist picture display
2 tons of explosion-proof electric hoist features:
1, explosion-proof electric control box and ordinary electric control box, compared with the volume, weight, handle more solid, waterproof and stronger, high sealing, waterproof and anti-fouling.
2. It can be used together with LXB explosion-proof single-beam suspension crane or LB, LHB explosion-proof single-beam and double-beam bridge crane according to different requirements.
3. The utility model has the advantages of compact structure, high speed, low noise, strong versatility of parts and components, explosion-proof performance and safety, etc.
Explosion-proof electric hoist parameters
| Weight lifting | 0.5吨 | 1吨 | 2吨 | 3吨 | 5吨 | 10吨 |
| Lifting speed（M/min） | 8 | 8 | 8 | 8 | 8 | 8 |
| Elevation （M） | 2006-9-12 | 6/9/12/18/24/30 | 6/9/12/18/24/30 | 6/9/12/18/24/30 | 6/9/12/18/24/30 | 6/9/12/18/24/30 |
| Speed of operatio（M/min） | 20 | 20 | 20 | 20 | 20 | 20 |
| Turn radius/ M | 1.8/2 | 2/2.5/3.0 | 2/2.5/3.0 | 2/2.5/3.0 | 2/2.5/3.0 | 2/2.5/3.0 |
| Voltage（V） | 380 | 380 | 380 | 380 | 380 | 380 |
| Frequency （hz） | 50 | 50 | 50 | 50 | 50 | 50 |
| Phase number | 3 | 3 | 3 | 3 | 3 | 3 |
| I-beam track type | 16-28b | 16-28b | 20a-32c | 20a-32c | 25a-63c | 25a-63c |
