Product introduction

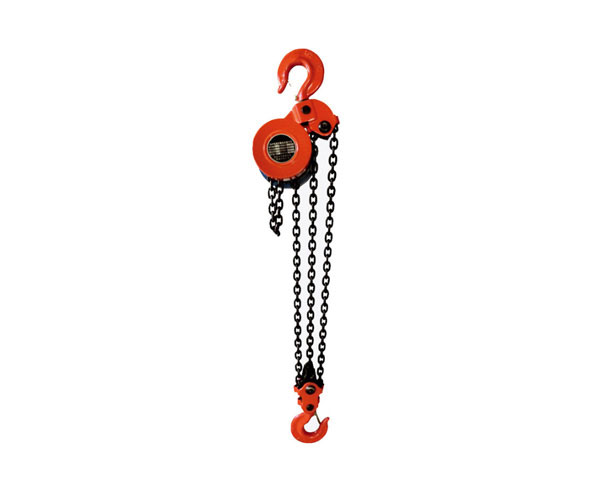

DHP chain electric hoist specifications and models have many, we also called the DHP chain electric hoist, he belongs to a kind of chain electric chain, Liyou is a professional DHP chain electric hoist manufacturers, this electric chain hoist is powered by a disc brake motor and decelerated by a planetary gear reducer. It has the advantages of fast lifting speed, smooth operation, compact parts, small size, light weight and convenient operation, beautiful appearance and other advantages.
Technical parameters
|
Models |
DHP5 |
DHP7.5 |
DHP10 |
DHP20 |
|
Rated lifting capacity |
5 |
7.5 |
10 |
20 |
|
Lifting speedm/min |
0.18 |
0.12 |
0.09 |
0.09 |
|
Experimental loadt |
7.5 |
9 |
12.5 |
25 |
|
Small distance between hooksmm |
600 |
700 |
780 |
1000 |
|
Line number of lifting chainn |
2 |
3 |
4 |
8 |
|
Elevationm |
3——9 |
|||
|
Motor Power w |
200 |
500 |
500 |
500 |
|
Motor speedr/min |
710 |
1380 |
1420 |
1420 |
|
Power supply |
380V/50Hz |
|||
|
NET weight（5m）kg |
58 |
|
|
240 |
|
Gross weight of packing（5m）kg |
69 |
|
|
260 |
|
Packing sizemm |
560*400*400 |
500*420*390 |
610*480*480 |
700*600*40 |
|
Note: The lifting height increases by 4.5 kg, 6.8 kg and 9kg per 1.5 m, 7.5 t and 10 t, respectively |
||||
Features
1, motor with brake device disc brake motor, brake fast, accurate positioning.
2. The reducer adopts planetary gear structure, the gear adopts alloy steel after heat treatment, Seiko production, running low noise, long life, running smoothly.
3. The gear box and the shell of the anti-external voice part E are made of alloy steel, which are not easy to be damaged when being struck.
4. The product structure is compact, convenient to use, safe and reliable
