Product introduction

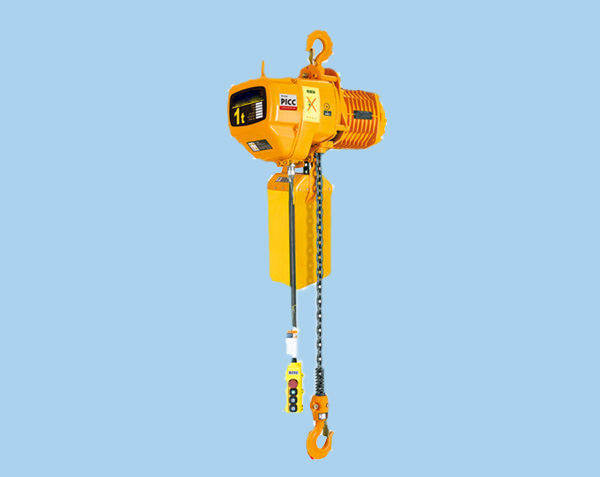

1 ton chain electric hoist liyou manufacturers focus on production, from product design to production are in place, the product’s working voltage is: 220V, 380V, 440V, etc. , according to customer needs can be highly customized, normally he works at temperatures ranging from -20 to -40 degrees Celsius. Is a good lifting weight of the product, the product after strict testing, product quality and reliable.
Technical parameters
| Models |
Lifting capacity/ton |
Elevation/m |
Lifting speed/m/min |
Lifting motor | ||||
| Power/kilowatt | RPM/rpm | Phase number | Voltage/volt | Frequency/hertz | ||||
| HHBD01-01 | 1 | 3/9 | 7.2 | 1.1 | 1440 | 3 | 220-440 | 50/60 |
Purpose
Can be used as a wide range of mechanical supporting chain electric hoist, water vapor air compressor chain electric hoist, etc. .
Instructions for use
1. Hang the gourd vertically. The suspension point should be of the correct size to accommodate the overhead hook or hook eye and allow it to be suitably positioned on the saddle.
2. Check the chain for twisting, knotting and stacking. The lifting chain must be hung vertically, the lifting chain and the lower hook must not be twisted and reversed, the lifting chain wheel and the lifting chain should be correctly meshed, otherwise the clasp lifting chain wheel, the guide wheel and the lifting chain, make the hoist not work properly.
3. Inject 100g molybdenum disulfide grease into I reducer.
4, connect the power supply, ground wire, positive and negative rotation once, check whether the rotation is flexible. 5, check the hook is hanging up and down, and then start work.
