Product introduction
CD1 wire rope electric hoist, also known as CD1 electric hoist, this product is based on many years of customer experience design and manufacture, the current product in line with the current concept of use, and the level of production technology has been greatly improved, is the use of gantry, single and double beams, cantilever crane and other good choice.
CD1 wire rope electric hoist picture

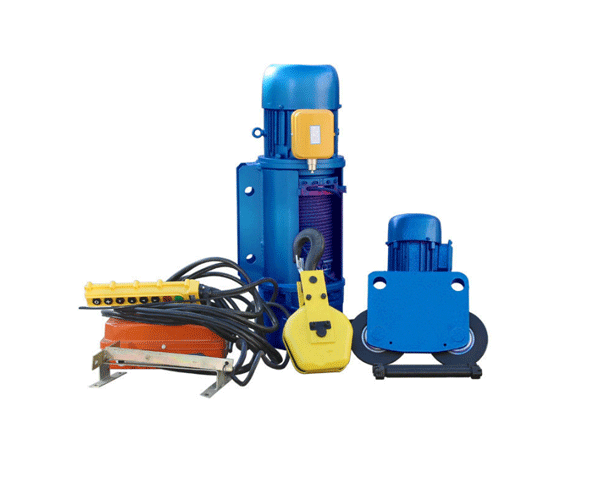

CD1 wire rope electric hoist with the use of parts
CD1 electric hoist packaging display installation
Installation in progress
CD1 wire rope electric hoist performance advantages
1, wear-resistant wire rope, high efficiency we all know in the use of the process if the quality of wire rope is not up to standard, prone to problems, especially wear and tear, etc. , now the CD1 electric hoist wire rope wear rate is relatively low.
2. The grade of motor is improved by using class B or Class F insulation, and the protection grade of motor is IP44/IP54. Security is good.
3, advanced structure, energy-saving environmental protection this product has been some structural details of the adjustment, reduce the noise, improve the use of the environment, economic and durable, really good.
Technical parameters
|
Models
|
0.25T
|
0.5T
|
1T
|
2T
|
3T
|
5T
|
10T
|
|
Weight lifting T
|
0.25
|
0.5
|
1
|
2
|
3
|
5
|
10
|
|
Standard lifting height M
|
6
|
6
|
6
|
6
|
6
|
9
|
9
|
|
Lifting speed m/min
|
8(8/0.8)
|
8(8/0.8)
|
8(8/0.8)
|
8(8/0.8)
|
8(8/0.8)
|
8(8/0.8)
|
7(7/0.7)
|
|
Speed of operation m/min
|
20(30)
|
||||||
|
Wire rope type
|
6×19-3.6
|
6×37-4.8
|
6×37-7.4
|
6×37-11
|
6×37-13
|
6×37-15
|
6×37-15
|
|
I-beam track type
|
16-22b
|
16-28b
|
16-28b
|
20a-32c
|
20a-32c
|
25a-63c
|
28a-63c
|
|
Small radius of circular orb m
|
0.8
|
1.5
|
1.5-4
|
2-4
|
2-4
|
2.5-5
|
3.5-9
|
|
Voltage v
|
380
|
380
|
380
|
380
|
380
|
380
|
380
|
|
Frequency Hz
|
50
|
50
|
50
|
50
|
50
|
50
|
50
|
|
Phase number
|
3
|
3
|
3
|
3
|
3
|
3
|
3
|
|
Note: The lifting height of wire rope electric hoist can be increased to: 9M, 12m, 18m, 24m, 30M according to customer’s requirement
|
|||||||
