Product introduction

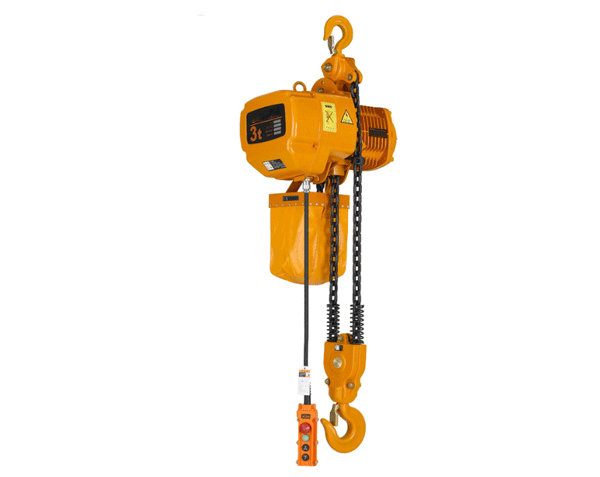

The electric hoist of the fast chain is made by the advanced technology imported. The electric hoist designed meets the needs of the current use. It is a kind of product of the electric hoist of the fast chain with high use efficiency, this product shape compact, and reasonable design, body light, wear less, the speed is relatively fast. Used in equipment installation, Luqiao District engineering, etc.
Performance characteristics
1, lifting efficiency, low loss this fast electric hoist is different from the climbing frame, lifting speed is faster, applicable to the speed requirements of the place.
2. It integrates the characteristics of hand hoist and electric hoist, improves the manual operation and lifting speed of hand hoist, and synthesizes the advantages of the two lifting equipment. It is more convenient to use.
3, easy to operate, low noise this product is relatively low work noise, and overload capacity is relatively strong, not easy to appear problems such as chain card.
Technical parameters
| Models | Rated load | Experimental load | Motor Power | Power supply | 提升
速度 |
起重链
条行数 |
标准起
升高度 |
圆钢
直径 |
主要尺寸 |
净重 | 装箱尺寸 | 起重高度每增1m所增加的重量 | |||
| A | B | C | H | ||||||||||||
| 1T | 1 | 1.5 | 0.3 | 380v50hz | 2.25 | 1 | 2.5 | 6 | 200 | 230 | 28 | 290 | 20 | 33x34x34 | 0.835 |
| 2 T | 2 | 3 | 0.3 | 380v50hz | 1.85 | 2 | 2.5 | 6 | 200 | 230 | 34 | 400 | 24 | 33x34x34 | 1.67 |
| 3 T | 3 | 4.5 | 0.5 | 380v50hz | 1.1 | 2 | 3 | 8 | 235 | 240 | 38 | 470 | 31 | 33x34x34 | 2.92 |
| 5 T | 5 | 6.25 | 0.75 | 380v50hz | 0.9 | 2 | 3 | 10 | 235 | 262 | 48 | 640 | 54 | 43x36x43 | 4.52 |
| 10 T | 10 | 12.5 | 0.75 | 380v50hz | 0.45 | 4 | 3 | 10 | 380 | 262 | 64 | 700 | 88 | 50x50x43 | 9.04 |
| 20 T | 20 | 25 | 0.75 | 380v50hz | 0.45 | 8 | 3 | 10 | 600 | 262 | 82 | 1000 | 195 | 72x72x85 | 18.08 |
