Product introduction

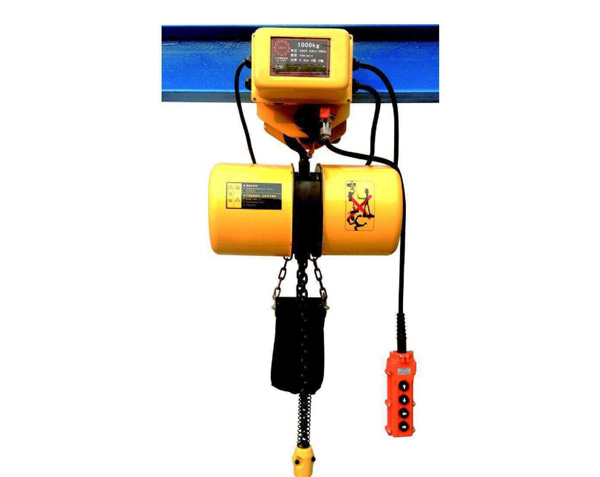

German Type 220V electric chain hoist is an indispensable product for lifting heavy objects. The electric chain hoist is produced through continuous innovation and practice. It has a unique manufacturing process, and has a great improvement in structure and technology, easy to operate, easy to maintain, I am sure that its lifting speed is divided into three, single-speed, two-speed, frequency conversion, according to their own needs to choose it. Widely used in factories, mines, docks, shops, warehouses and other places.
Performance Advantage
1, the production process is unique, select high-quality raw materials this product made of advanced raw materials, and equipment durable, long use time. 2, the operation effect is higher, and the lifting is stable this product design is exquisite, convenient transportation, stable and reliable. 3. Safe and reliable use of single-phase electric 220V electric chain hoist has up and down travel switch, when the hook up or down to the travel limit position, this machine will automatically cut off the power, the hook then stop action.
Technical parameters
|
Models |
Weight lifting（kg） | Ex-factory, test （kg） |
Lifting chain specifications（mm） | Line number of lifting chain（n） | Motor Power（kw） | NET weight（kg） | Speed up（m/min） | Power supply voltage（V） | Switch voltage（V) | Frequency（Hz） | No-load current（A) | Current at full load（A） | Motor load duration rate（%） | The number of electrical connections per hour（n） |
| D300kg | 300 | 3 | 6×18 | 1 | 0.55 | 35 | 10 | 380/220 | 24 | 50 | 2 | 2.5 | 50 | 240 |
| D450kg | 500 | 3 | 6×18 | 1 | 0.55 | 36 | 7 | 380/220 | 24 | 50 | 2 | 2.5 | 50 | 240 |
| D980kg | 980 | 3 | 6×18 | 2 | 0.55 | 45 | 3.5 | 380/220 | 24 | 50 | 2 | 2.5 | 50 | 240 |
| D980kg | 980 | 3 | 6×18 | 2 | 1.0 | 45 | 5 | 380/220 | 24 | 50 | 3 | 4 | 50 | 240 |
