Product introduction

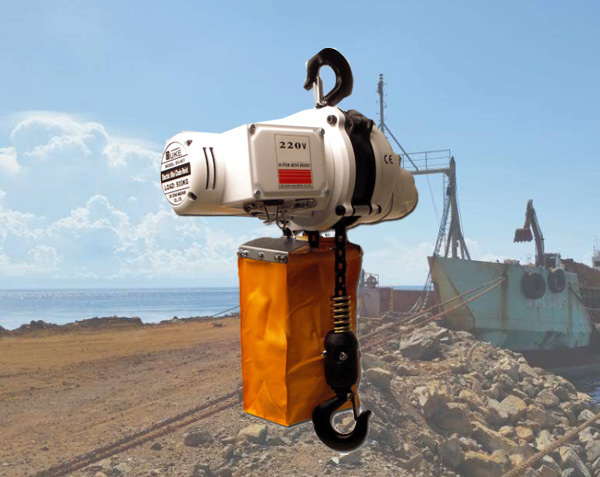

Small diamond chain electric hoist is a kind of chain electric hoist, the product is widely used, and can be upgraded according to the needs of customers, the product can be used with i-beam, can also be used in the cantilever crane, gantry, among the many chain electric hoist products, the use rate is relatively high, the product is widely used in factories, mines, warehouses, freight yards and other places, reasonable design.
Performance characteristics
Safety system: DU-75A small diamond electric hoist design has over-winding prevention device + reverse winding prevention device
electronic control system: save cumbersome line, using direct control, control switch and power line using a separate fast connector
cable specifications: steel wire imported from Japan, Factor of safety
gear system: high efficiency bevel drive type reduction gear, alloy steel heat treatment gear
the main body: the motor body and the gear box are aluminum alloy die-casting-body molding, after the computer CNC machining, low noise, smooth operation
How it works
Using Powder metallurgy clutch as Overload Protection Device, 0008 brake adopts disc type DC electromagnetic field brake, braking torque is big, smooth, fast and low noise. Taiwan xiaojiangang electric hoist is a standard chain electric hoist, with an independent gearbox system, sealed gearbox in the two-stage coaxial transmission gear, using long-life oil bath lubrication system. When the motor is used as the power cut, the motor decelerates instantly, and at the same time the mechanical ratchet brake operates, and the double safety brake device makes the little diamond electric hoist not have the situation of brake failure, greatly enhanced the security of use.
Technical parameters
