Product introduction

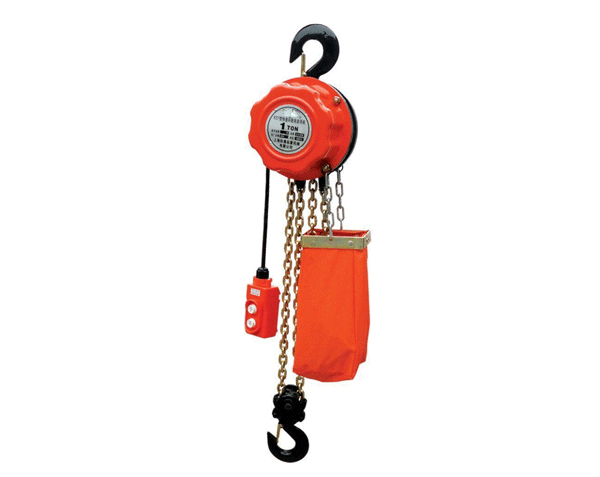

DHK electric chain hoist is a very good technology equipment, excellent performance, compared to ordinary electric chain hoist, the structure of the design is more reasonable, his specifications, models and structure have made adjustments, and so on, it has more advantages than the traditional electric hoist and is suitable for lifting heavy objects in factories, mines, docks and warehouses.
Performance Advantage
1. Meets the relevant standards this product body each, strong and durable, and internal gears are after high-temperature quenching, with good wear resistance and toughness.
2, the production process using advanced production technology, the production of products made fine workmanship, and between the gears fit tightly, not easy to appear loose.
3, can be used in many ways we can operate on the ground, can also be long-distance indoor operation, can be used with a car.
4, smooth running this chain electric hoist disc brake motor as power, cycloid pin reducer deceleration, with fast speed, smooth running.
Technical parameters
| Models | DHK1 | DHK2 | DHK3 | DHK5 | DHK10 |
| Rated lifting capacity | 1000kg | 2000kg | 3000kg | 5000kg | 10000kg |
| Test load | 1.25T | 2.5T | 3.75T | 6.25T | 12.5T |
| Power supply | 380V 50Hz | ||||
| Motor Power | 0.5kw | 0.8kw | 1.1kw | 1.5kw | 1.8kw |
|
Speed up |
3M/min | 2.5M/min | 2M/min | 2M/min | 1.5M/min |
| Small distance between hooks | 300mm | 380mm | 470mm | 600mm | 730mm |
| Standard lifting speed | 3m | ||||
| NET weight | 42kg | 50kg | 55kg | 62kg | 100kg |
| Gain weight for every meter of height | 0.82kg | 1.7kg | 2.9kg | 4.42kg | 8.8kg |
